Standard data and equipment: single phase 220V/50Hz, Brass impeller, or Nylon impeller, carbon steel motor shaft.
Other model and material such as three phase,110V,60Hz, dual voltage, stainless steel shaft, etc, will be avallable upon request.

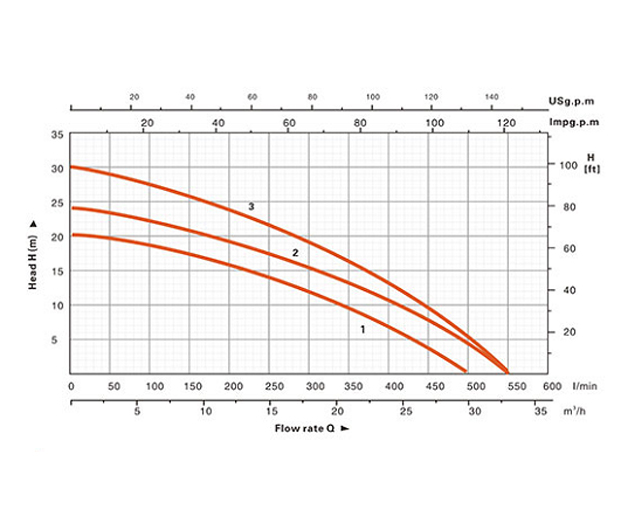

| NO. | MODEL | POWER | Q(m3/h) | 0 | 3.0 | 6.0 | 9.0 | 12.0 | 15.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 33.0 | |
| kw | HP | Q(I/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | ||
| 1 | CPF-60 | 1.1 | 1.5 | H | 20 | 19.5 | 19 | 18.2 | 17.5 | 16.8 | 15.5 | 14 | 12.0 | 10.0 | 7.0 | |
| 2 | CPF-70 | 1.5 | 2 | 24 | 23.5 | 22.5 | 21.5 | 20.5 | 19.5 | 18 | 16.5 | 14.5 | 12.5 | 10.0 | 7.0 | |
| 3 | CPF-80 | 2.2 | 3 | 30 | 29.5 | 29 | 28 | 27 | 25.5 | 24 | 21.5 | 19.0 | 16.0 | 12.5 | 9.0 | |
| NO. | MODEL | INLET/OUTLET (Inch) |
N.W (Kg) |
LxWxH (mm) |
| 1 | CPF-60 | 2”x2” | 23.5 | 400×235×310 |
| 2 | CPF-70 | 2”x2” | 23.5 | 400×235×310 |
| 3 | CPF-80 | 2”x2” | 28 | 415×235×310 |
